BMC Teammachine SLR 01 Frameset Var0 cbn 000 000
Up, but make it custom. Our lightest carbon and aerodynamics come together to deliver peak climbing and race performance.
Teammachine SLR 01 is peak BMC: the ultimate carbon climbing frameset with minimal weight, next-level power transfer, advanced aerodynamics, and a ride feel shaped in our Impec Lab to be lighter, sharper, and faster than ever.
This ultra-light 01 Premium Carbon frame brings ruthless power transfer uphill with an uncompromisingly low weight and the sharpest handling on the way down.
Evolved aerodynamics across the frame unlock free speed – bringing our most advanced lightweight road bike closer than ever to the Teammachine R 01 in outright aerodynamic performance.

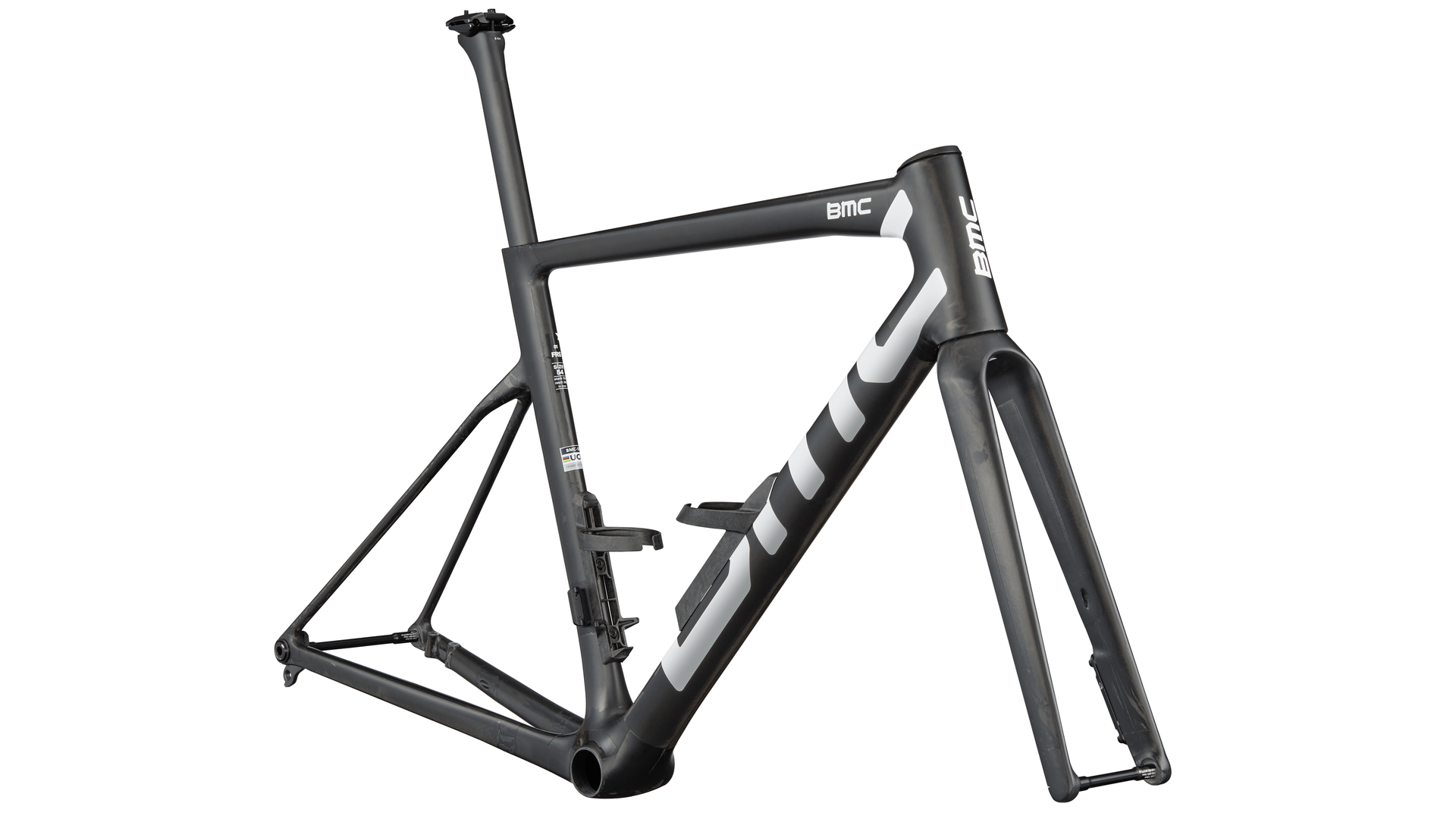

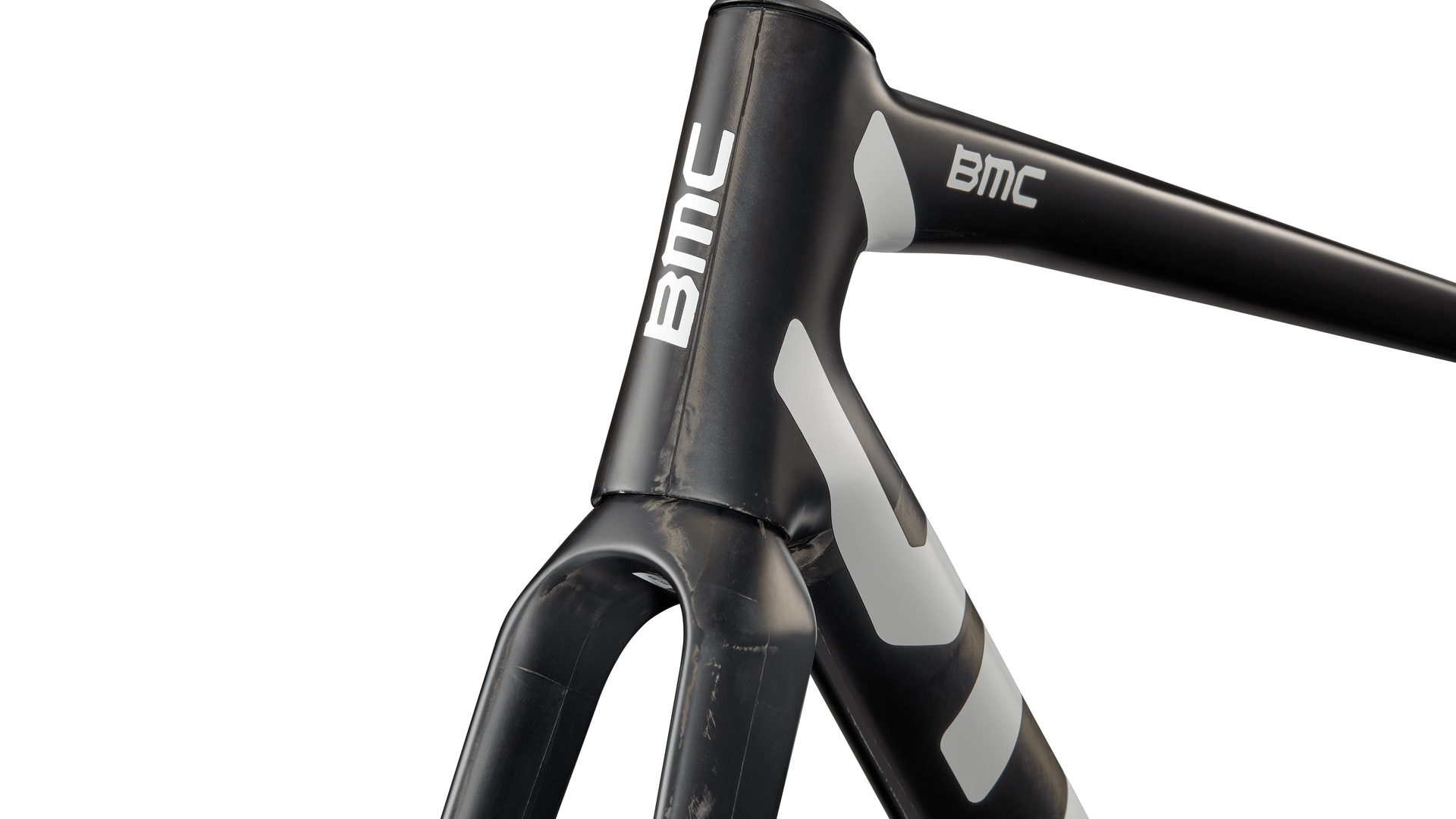

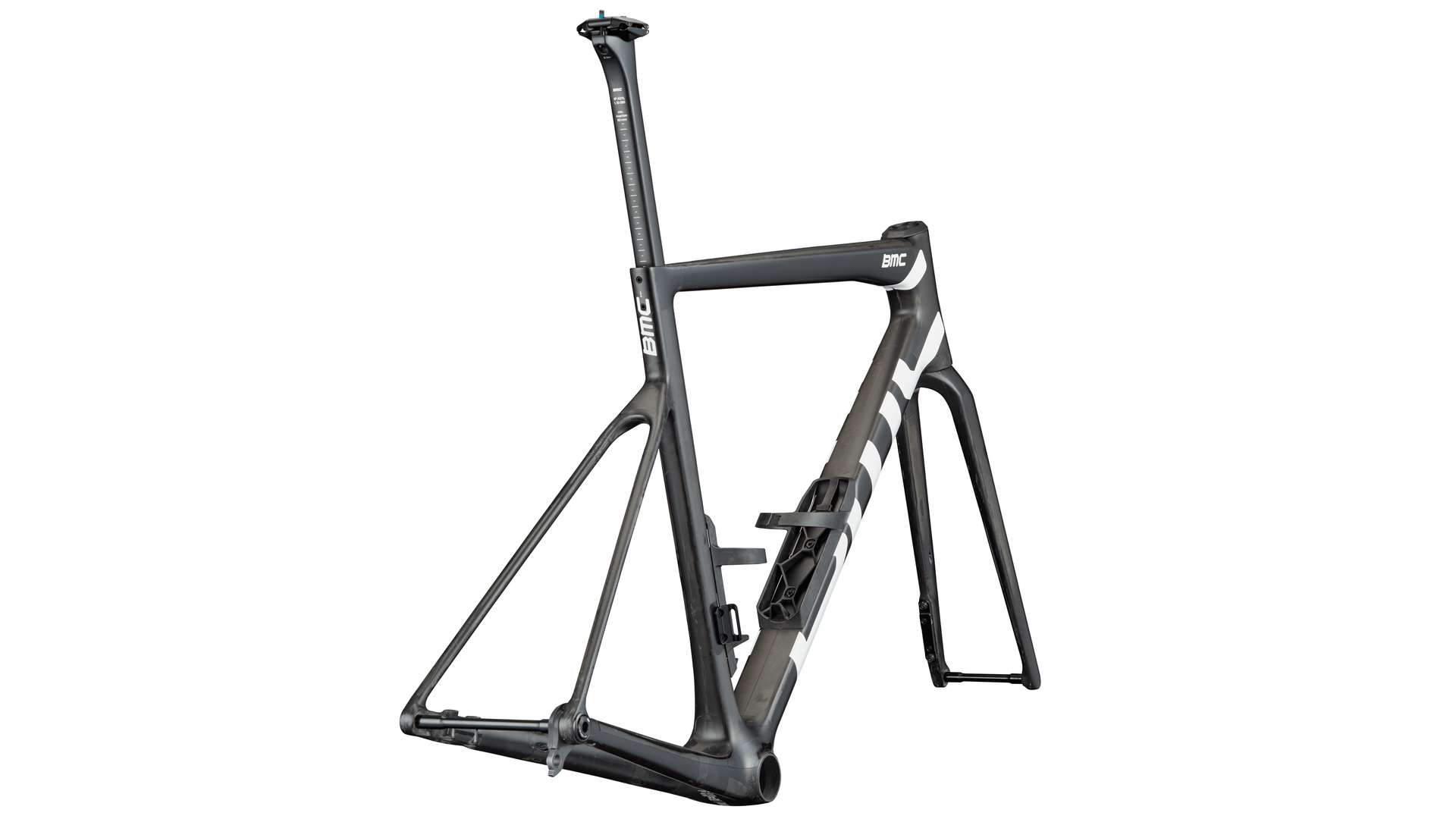

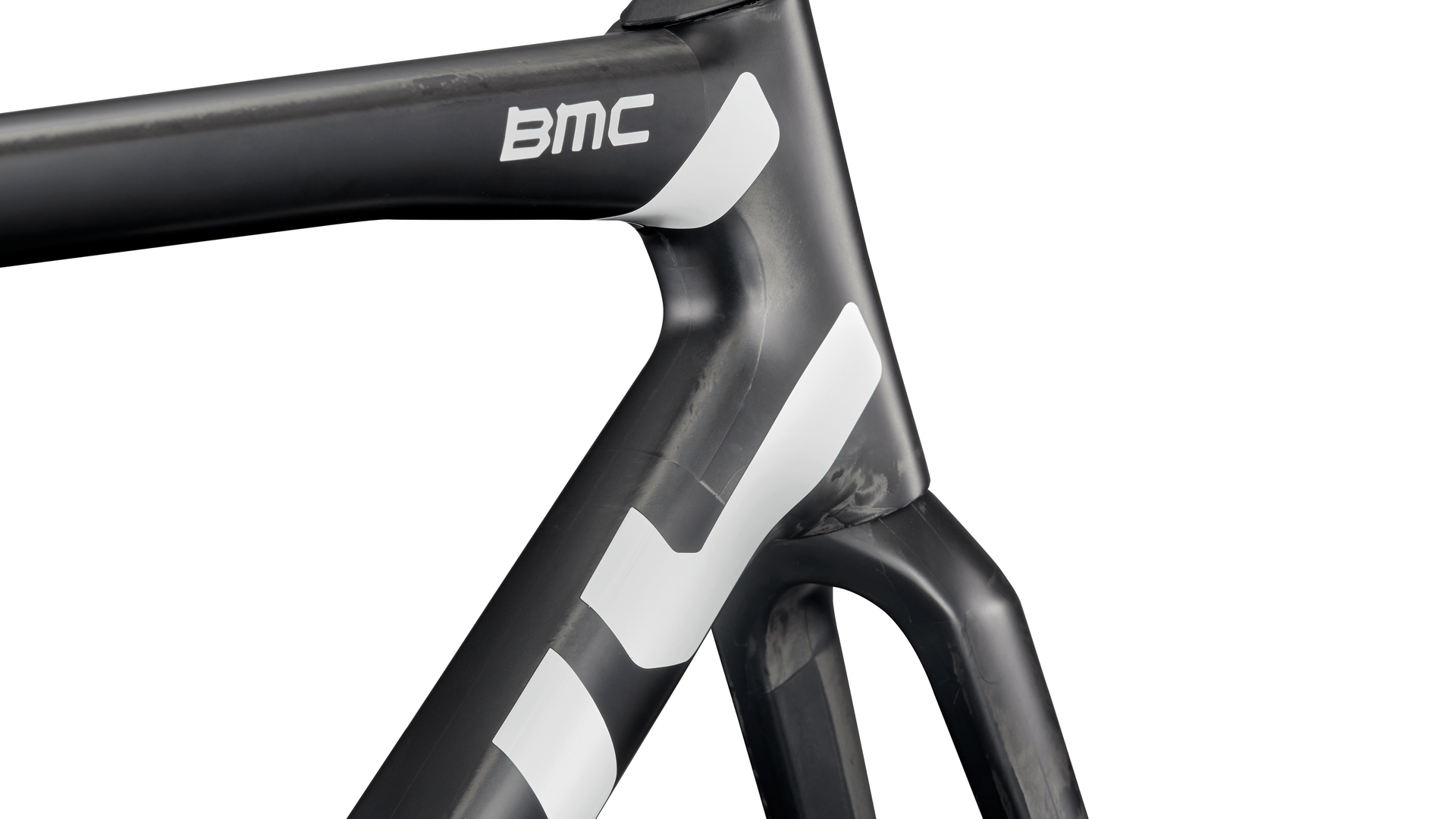

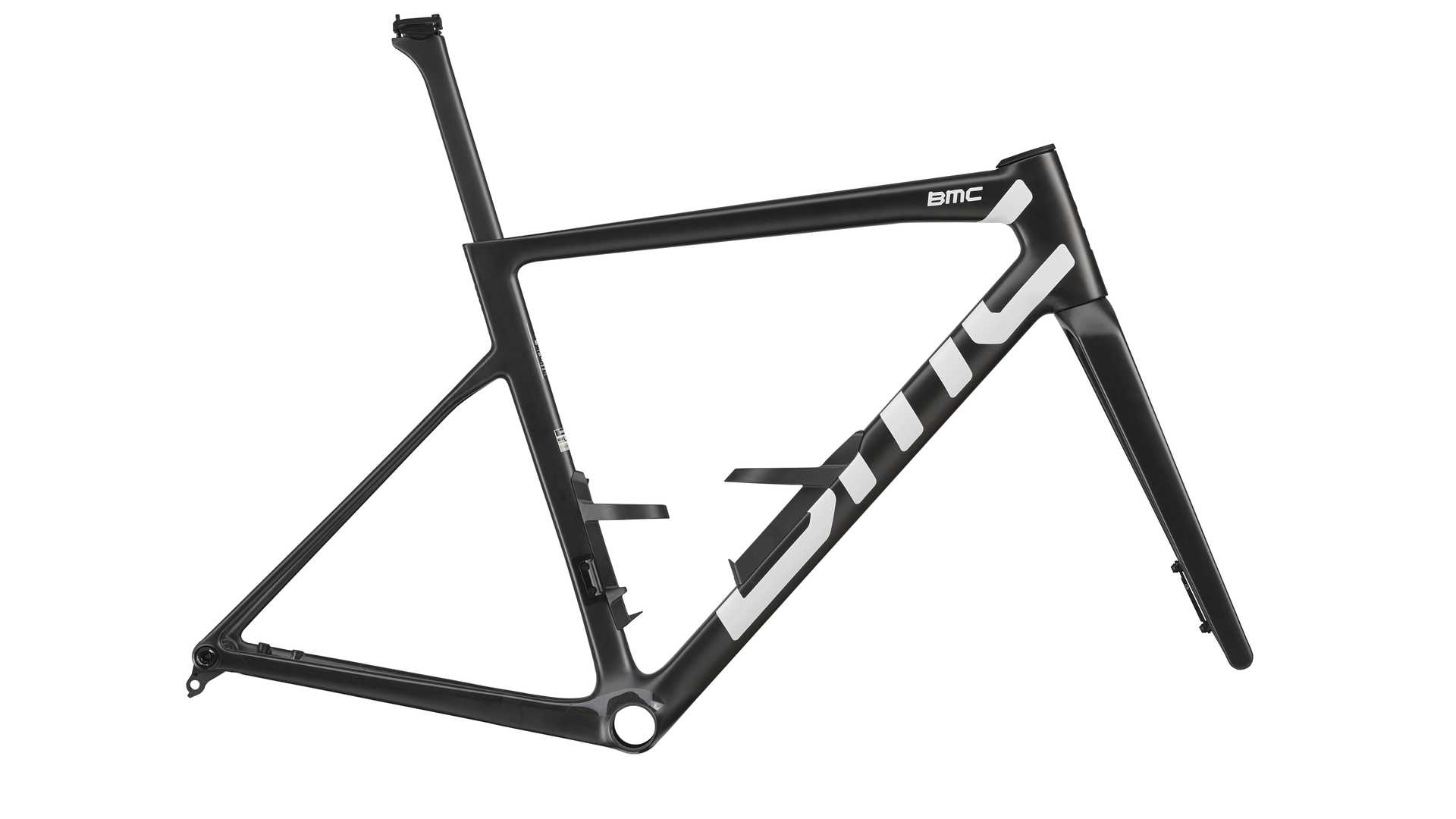

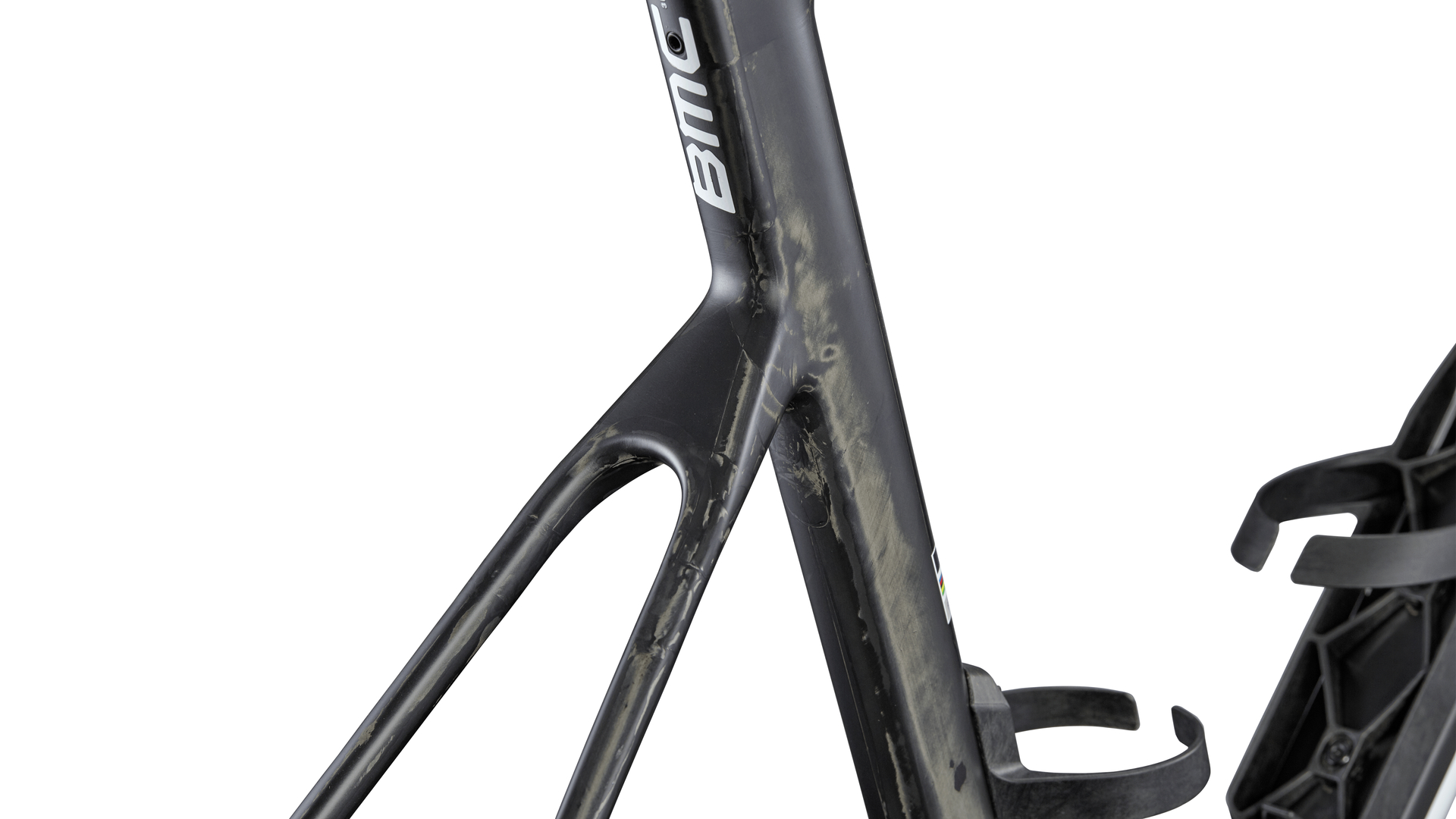

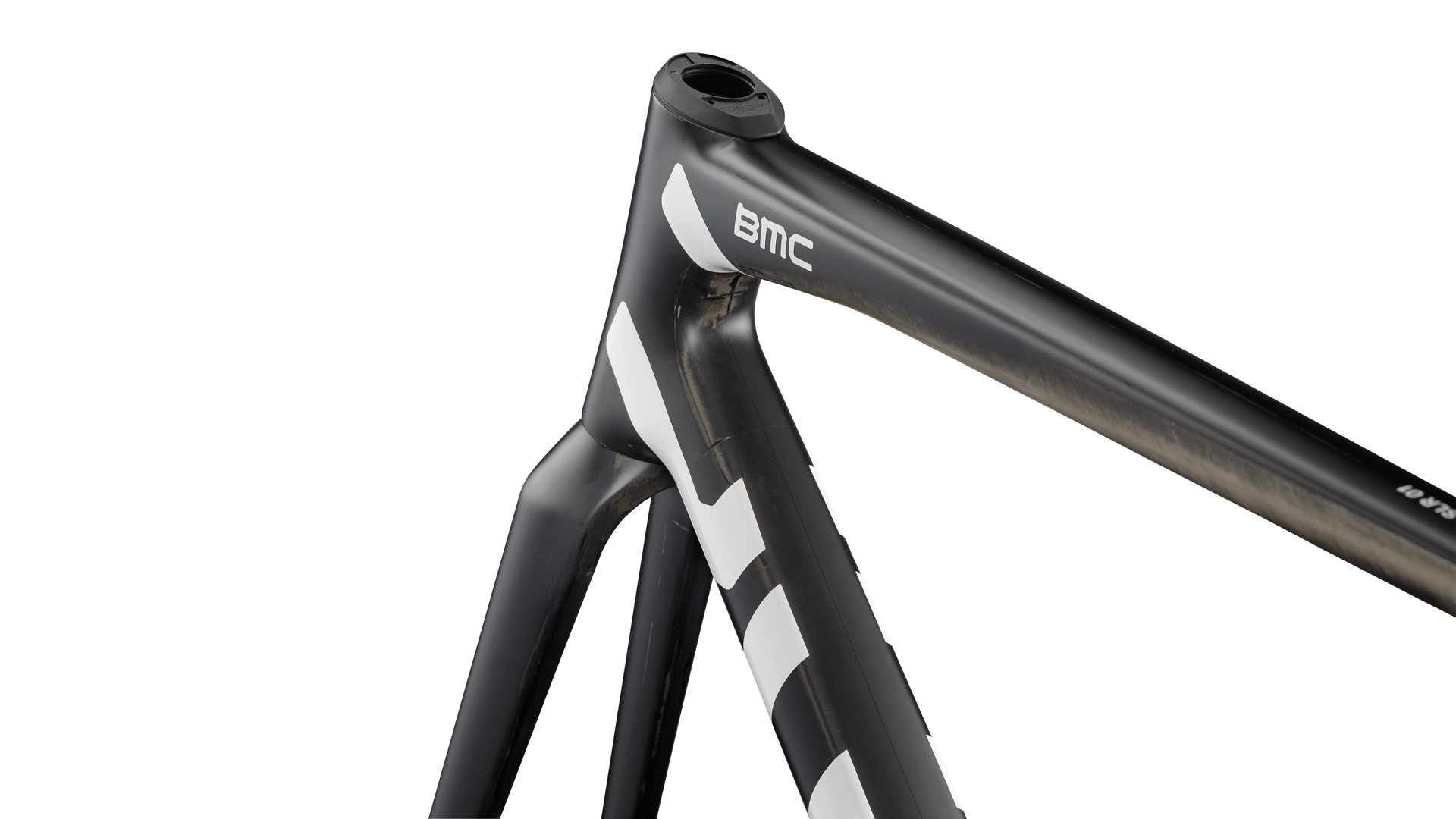

This frame-only version with a stripped-back VAR0 finish is for those who want something different. It comes in raw carbon with easy-to-remove decals, becoming your canvas to create the BMC Teammachine SLR 01 of your dreams with a custom paint job and custom build.
Frame:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:

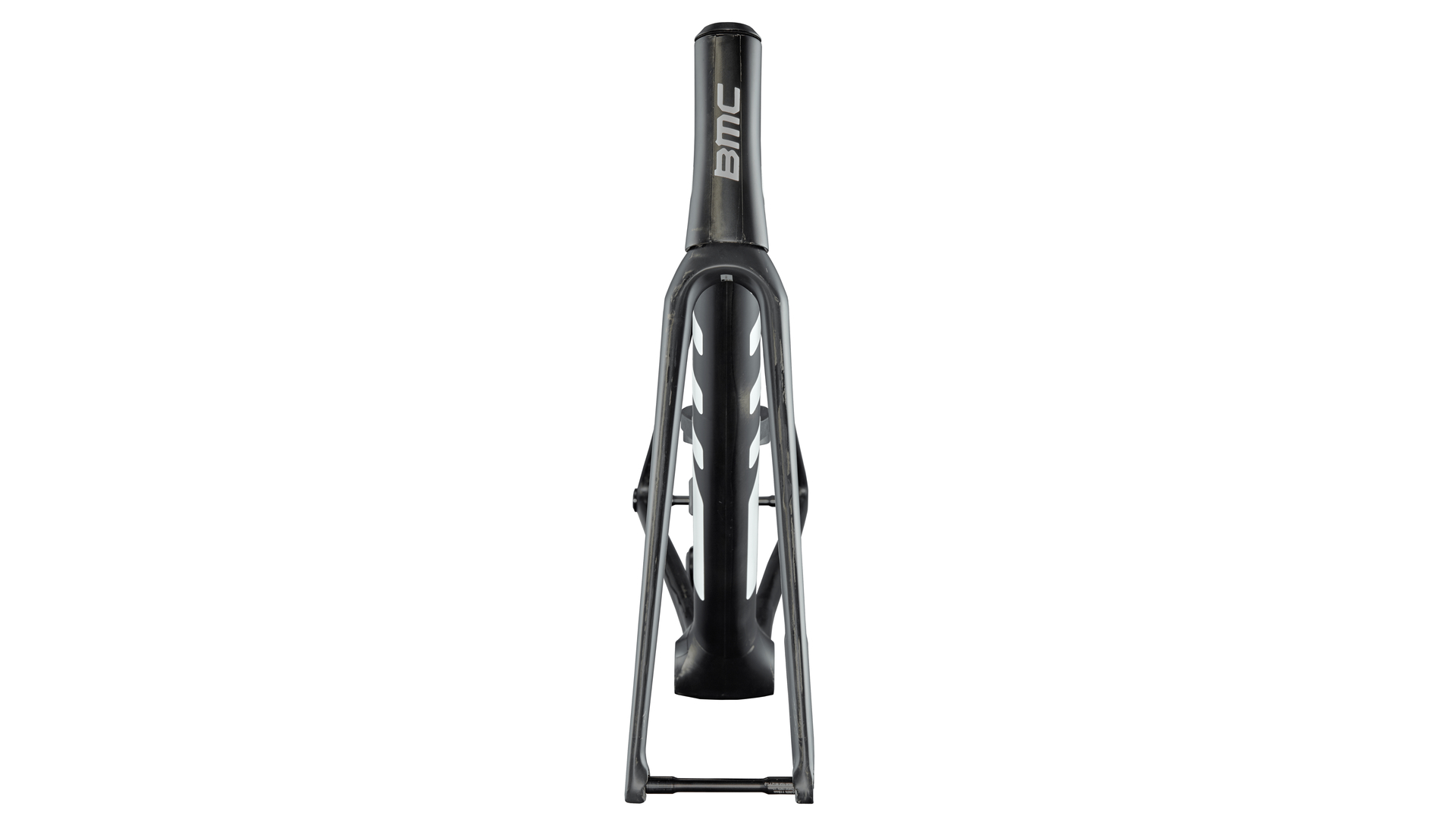

Teammachine SLR 01 Gen 5 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
Seat
Seatpost:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Drivetrain
Front Derailleur:
Derailleur hanger for Front Derailleur (2x drivetrain - 44.5mm chainline), and Cover (1x drivetrain)
Rear Derailleur:
Full Mount - UDH
Bottom Bracket:
Press-Fit 86.5mm Road
Brakes
Rotor Size (F/R):
Rotor compatibility: 160mm front | 140mm or 160mm rear
Accessories
In the Box:

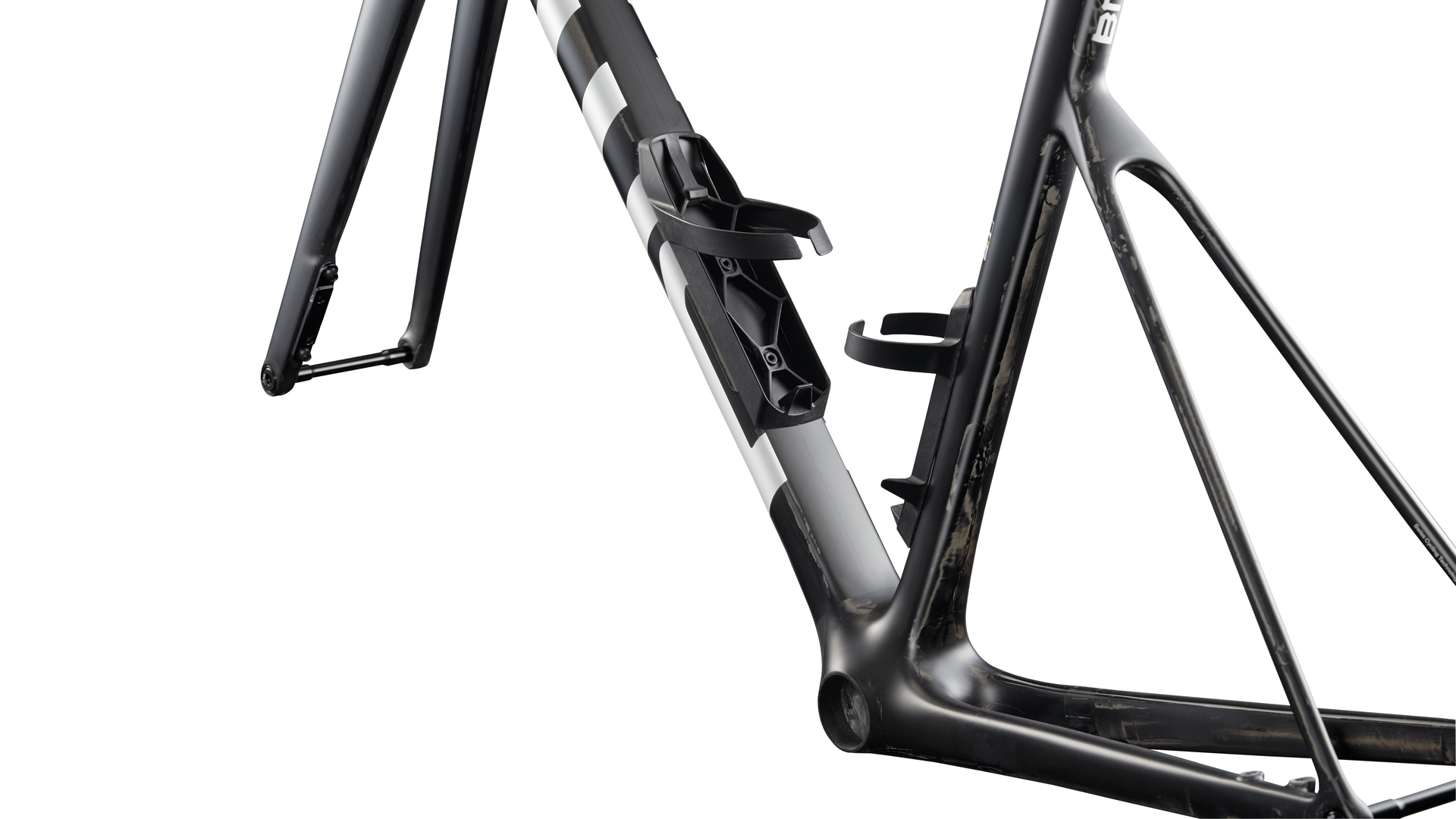

Aerocore Bottle Cages | SRAM UDH derailleur hanger | SHIMANO Direct Mount derailleur hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers
Additional Information
Tire Clearance:
32mm measured tire
Weight without Pedals:
1485g | Size 54 as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
