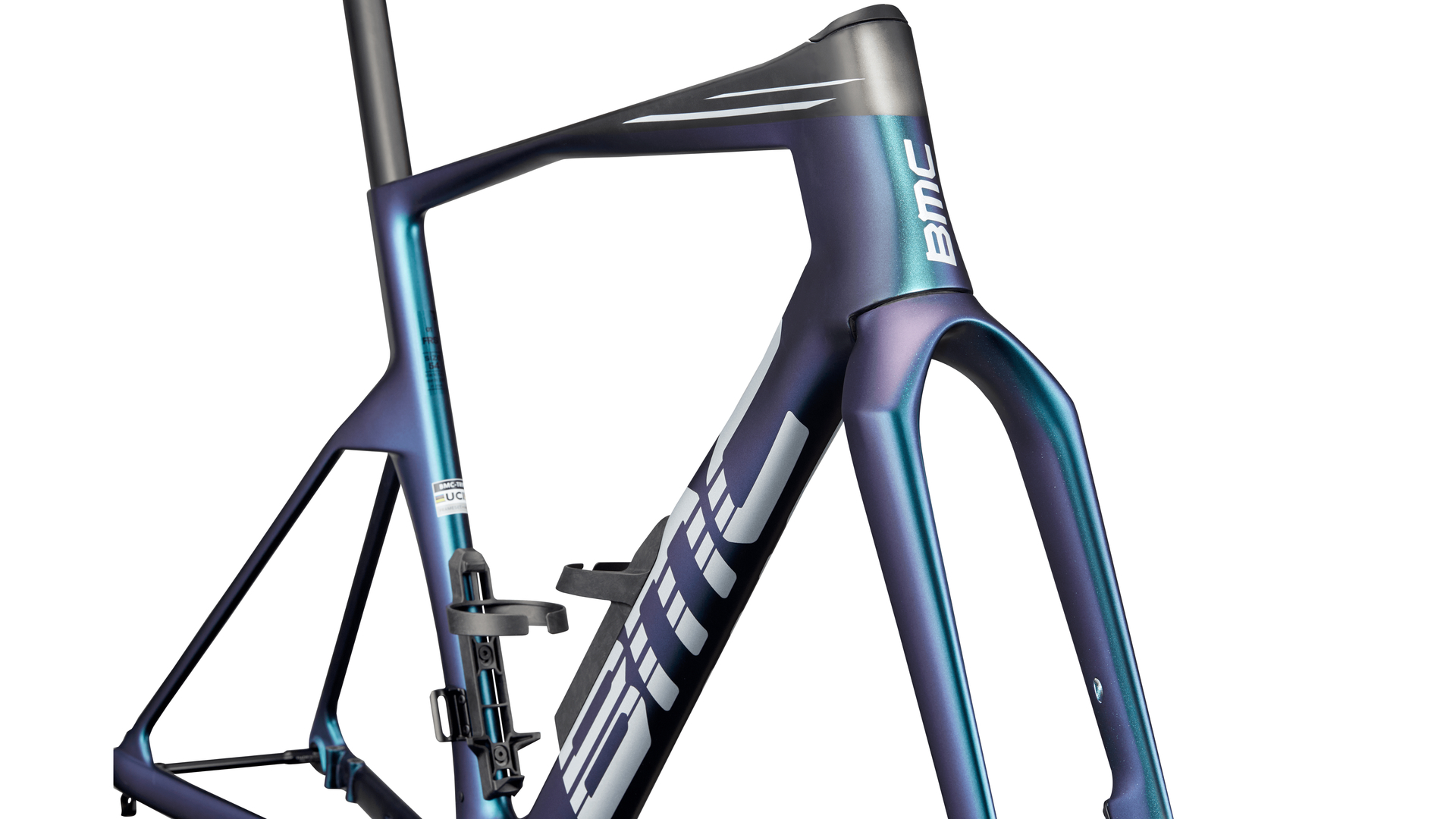

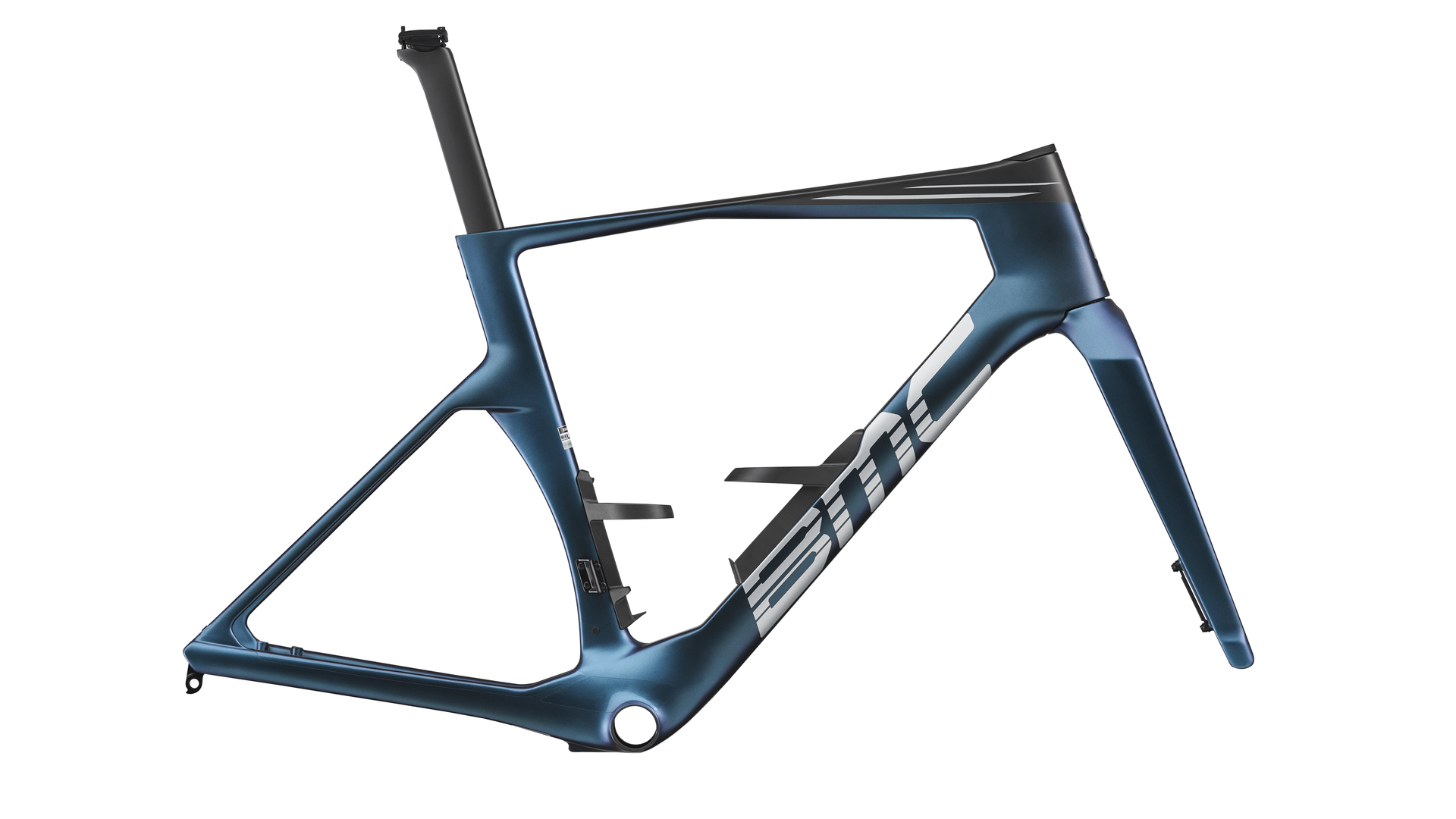

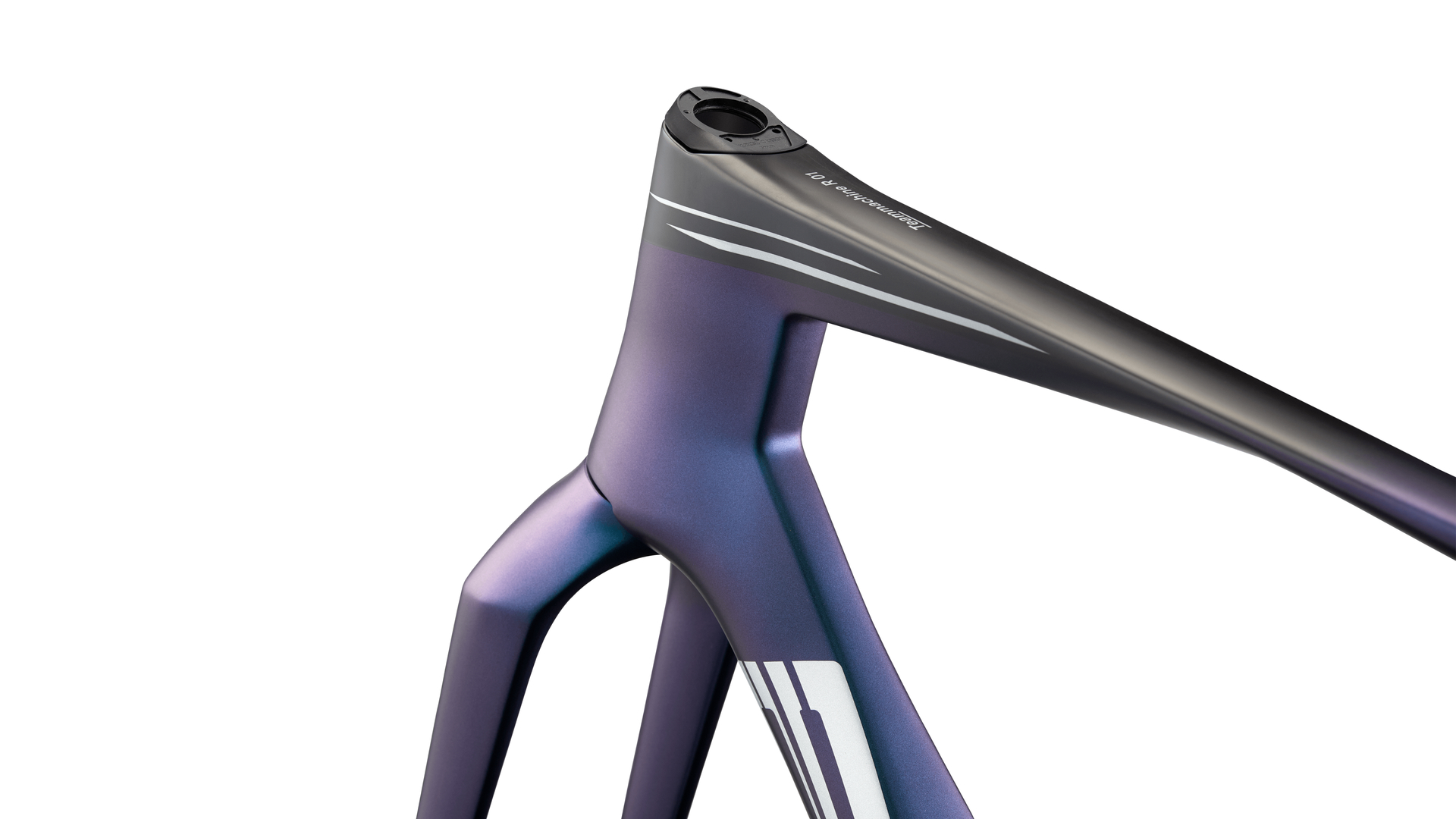

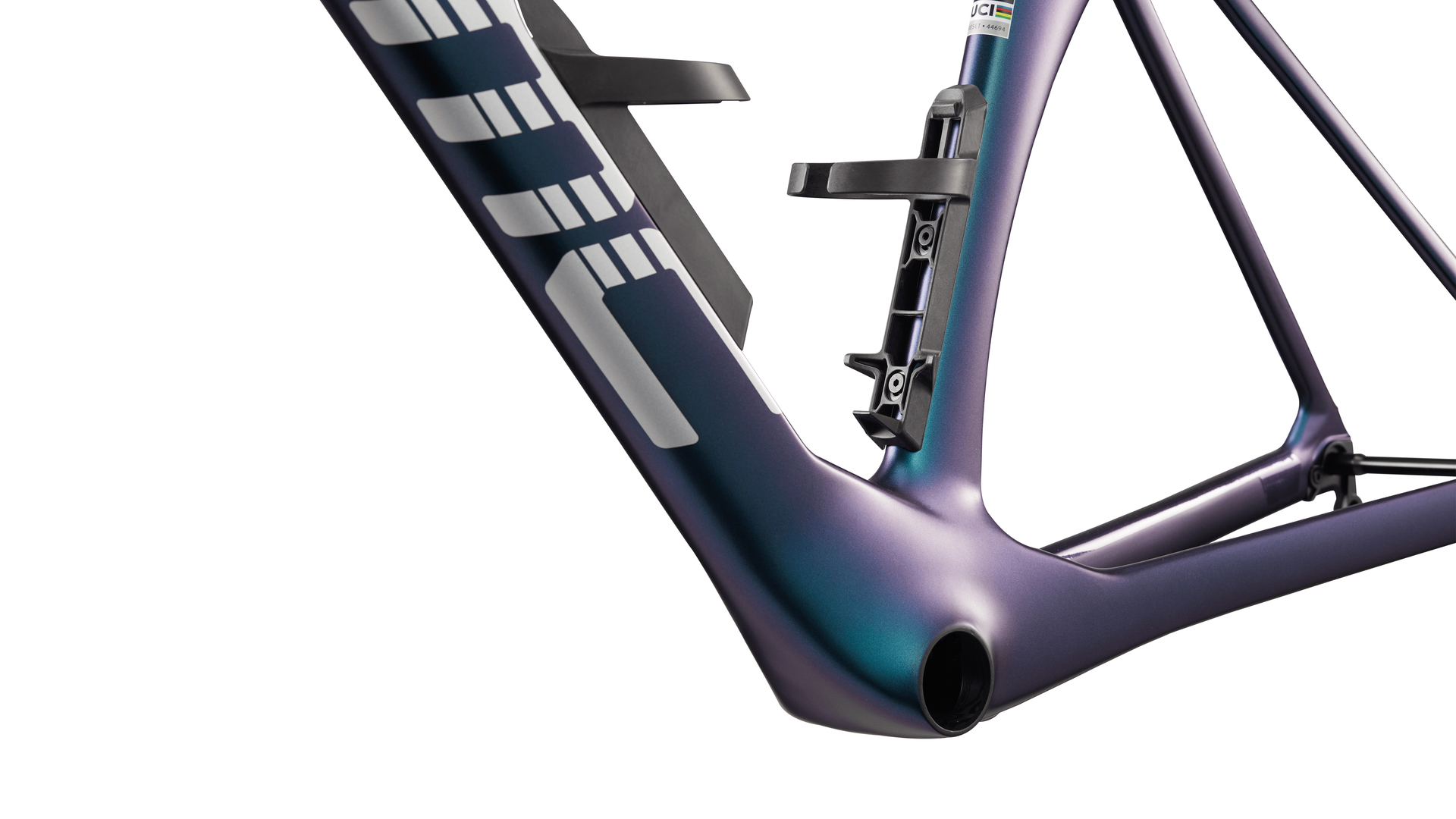

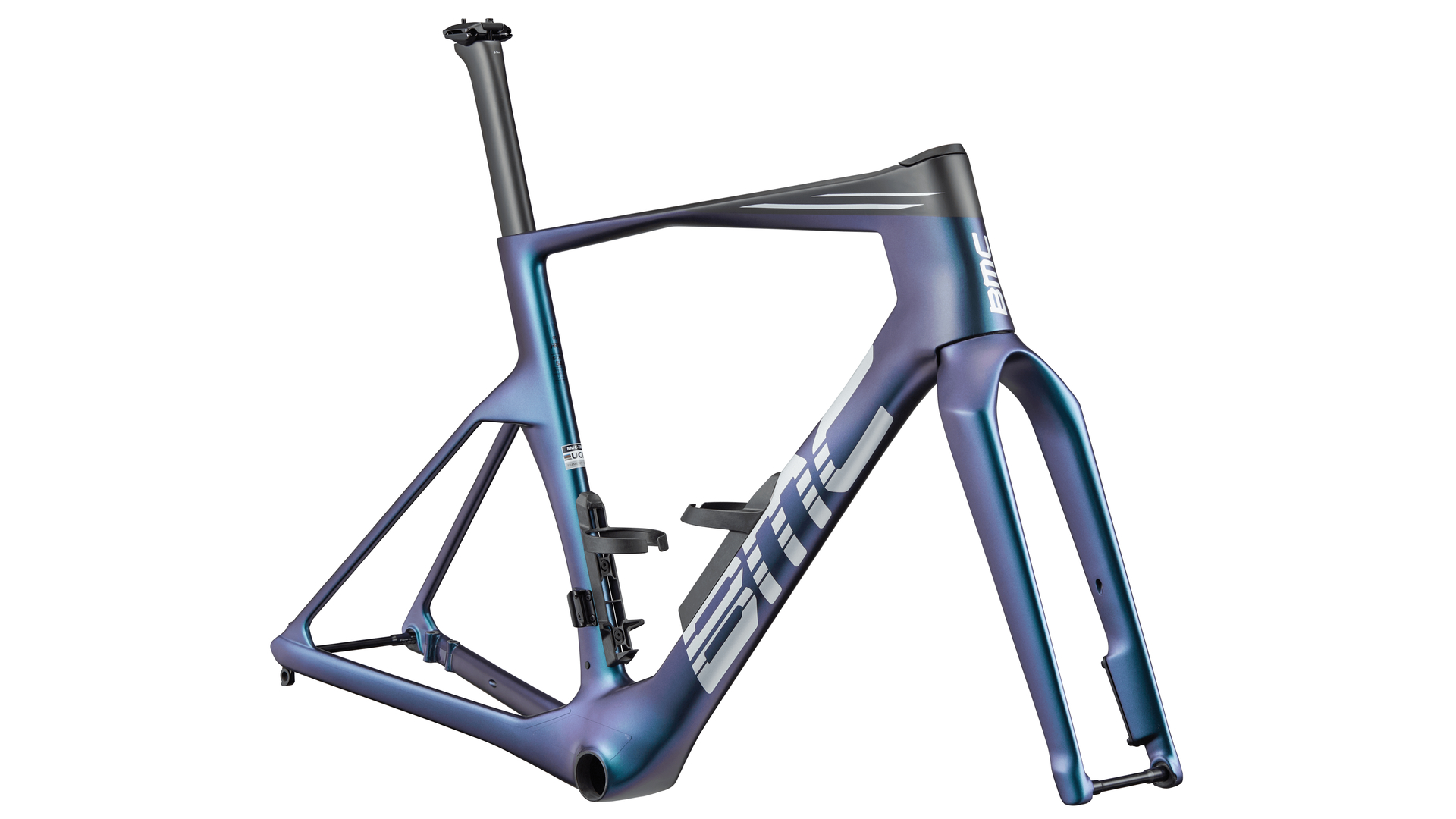

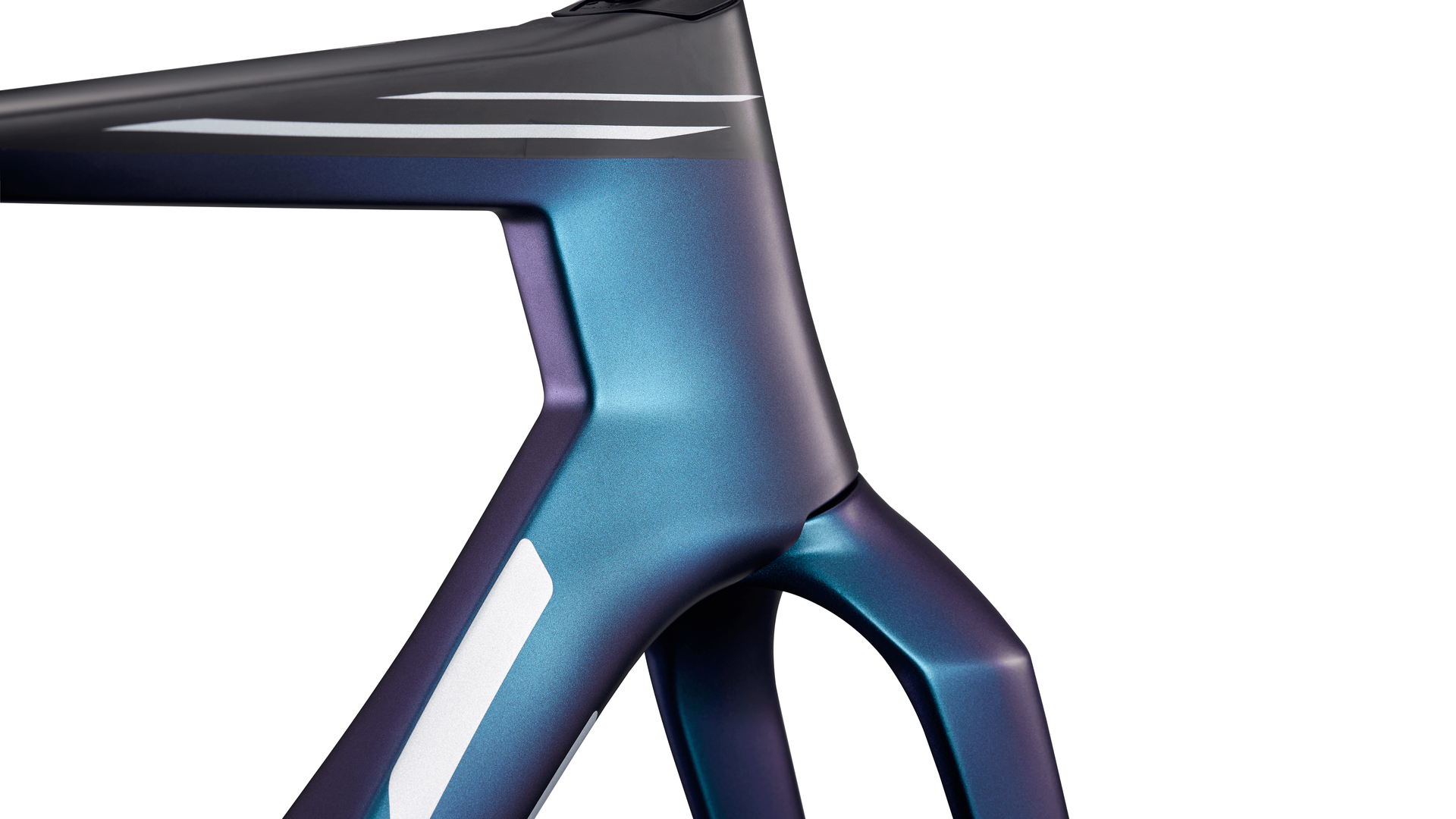

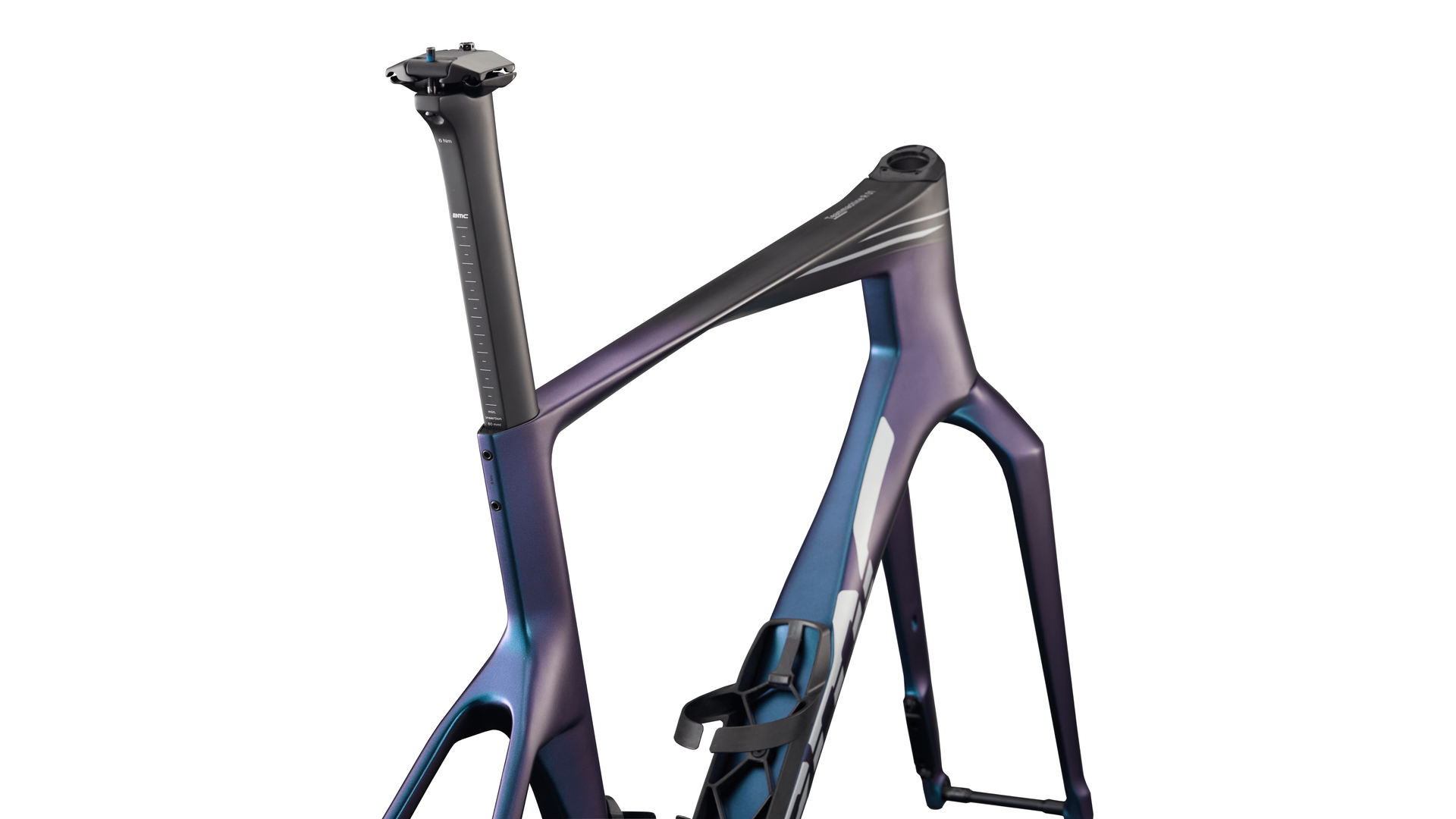

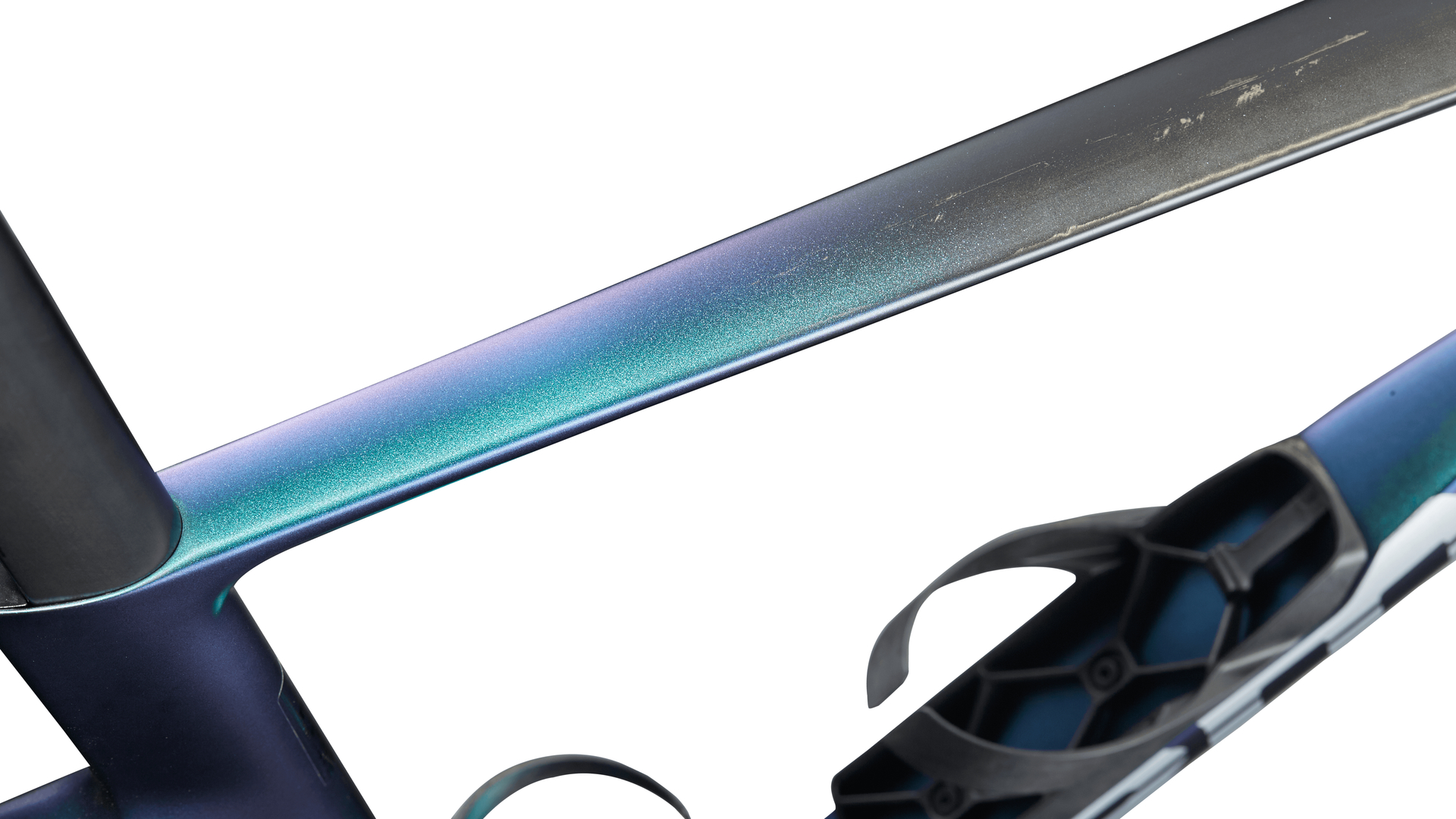

BMC Teammachine R 01 Frameset Var4 chm bru cbn

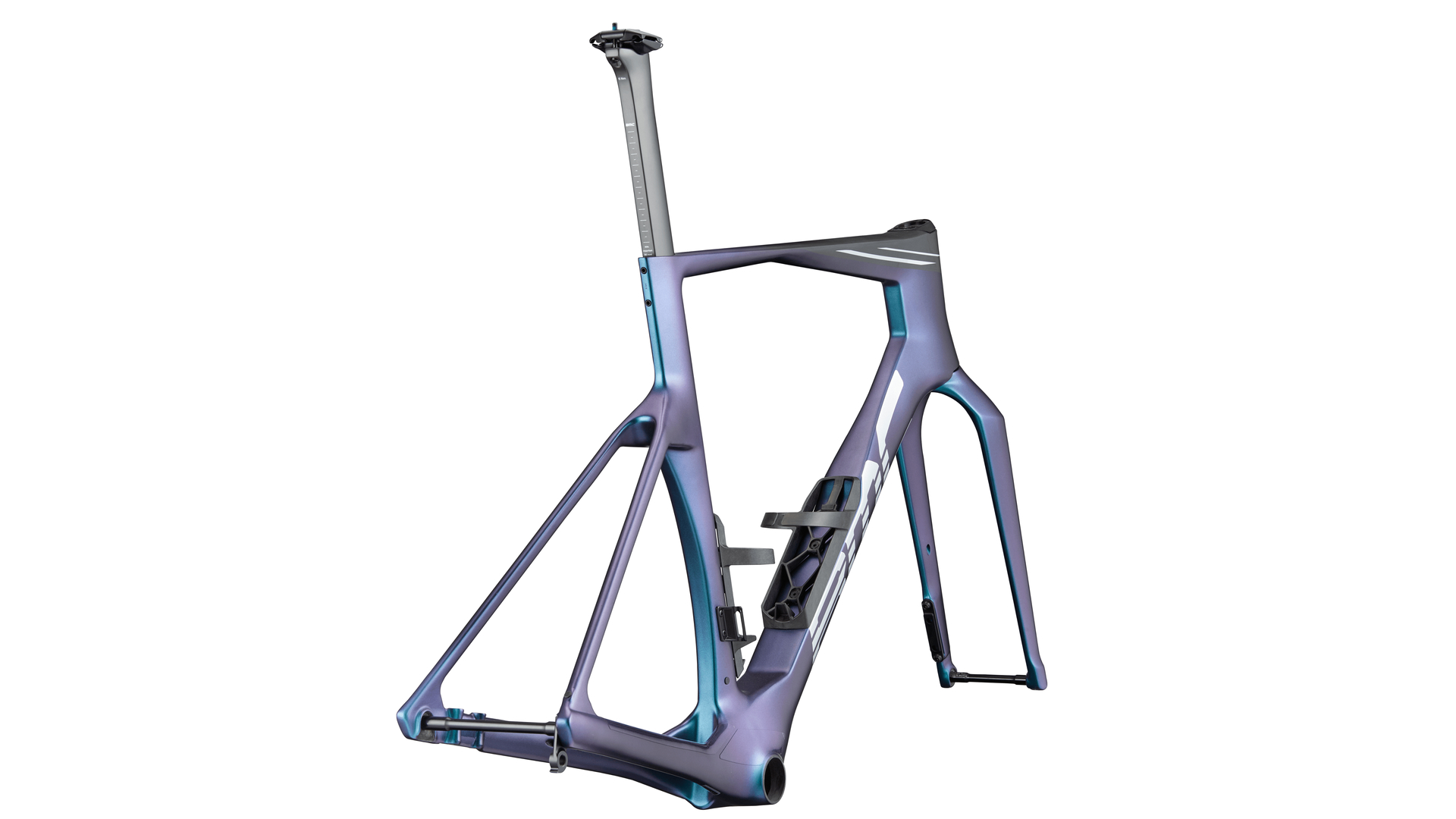

The Teammachine R 01 VAR 4 Frameset, uncompromising performance ready for an uncompromising build.
Taking race winning performance and offering it in an exclusive "Chameleon Petrol / Carbon" colorway, ready to be your foundation of your perfect build, the Teammachine R 01 VAR 1, gives you the option to finish your bike as you dreamt. With all the time saving aerodynamics, sprint winning power transfer, corner railing handling and road smoothing compliance of the Teammachine R 01, this "Chameleon Petrol / Carbon" frameset comes ready for the build you’ve always dreamed of.
Think pro-team build for one, this lightweight frameset, developed with Red Bull Advance technology redefines what a race bike can do.
Climbs, cobbles, sprints, corners? It’s got it covered and then some. Build it as you want, ride it as fast as you can.
Frame:
Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Seat
Seatpost:
Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Drivetrain
Front Derailleur:
Riveted derailleur hanger for Front Derailleur (2x drivetrain - 44.5mm chainline)
Rear Derailleur:
BMC derailleur hangers: SHIMANO Direct Mount + SHIMANO or SRAM Direct Attachement (standard)
Bottom Bracket:
Press-Fit 86.5mm Road
Brakes
Rotor Size (F/R):
Rotor compatibility: 160mm front | 140mm or 160mm rear
Accessories
In the Box:
Aerocore Bottle Cages | Shimano Direct Mount derailleur hanger | Classic SRAM/Shimano derailleur hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers
Additional Information
Tire Clearance:
30mm measured tire
Weight without Pedals:
1810g | Size 54 as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
