POST MOUNT ADAPTORS
Description
Warranty

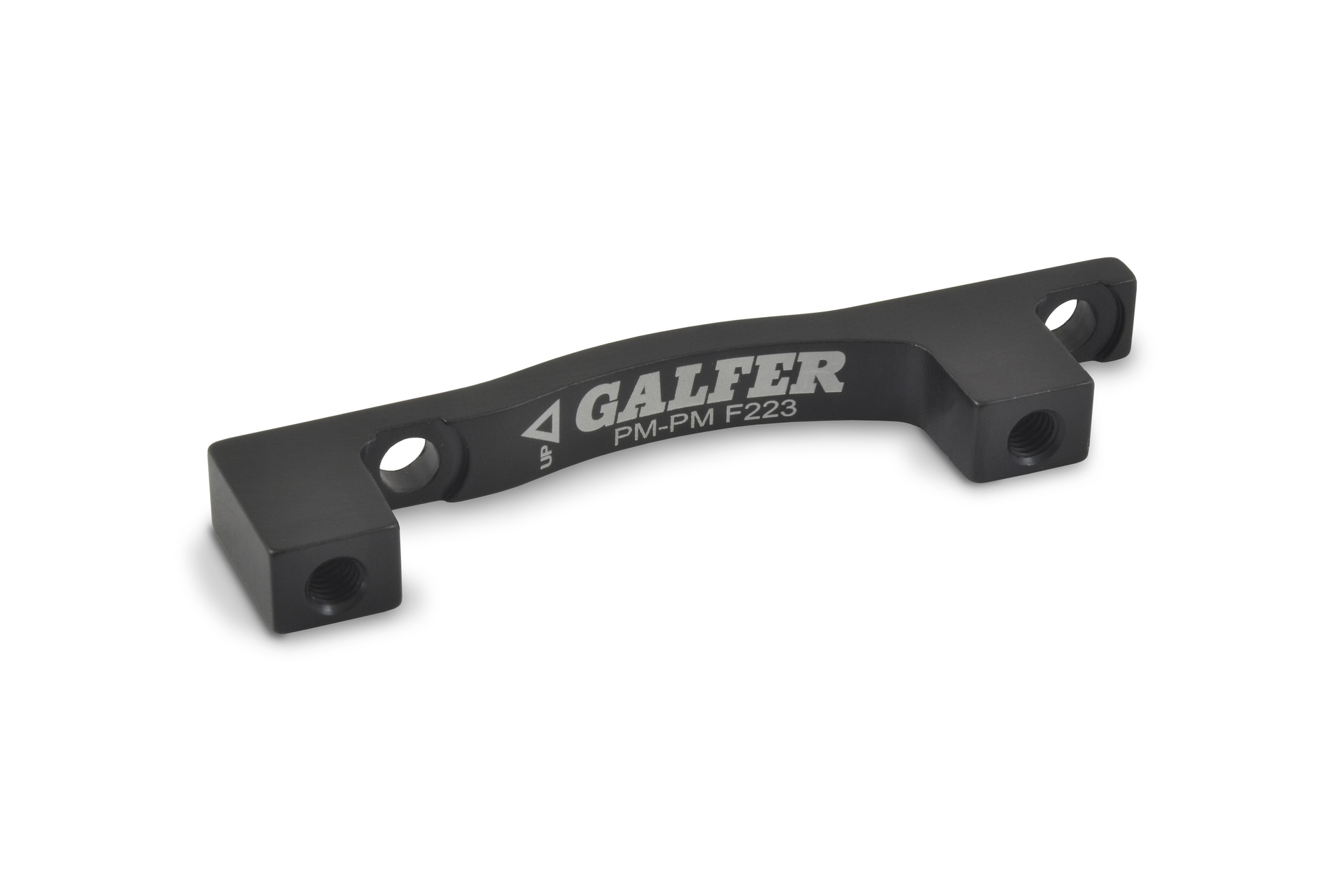

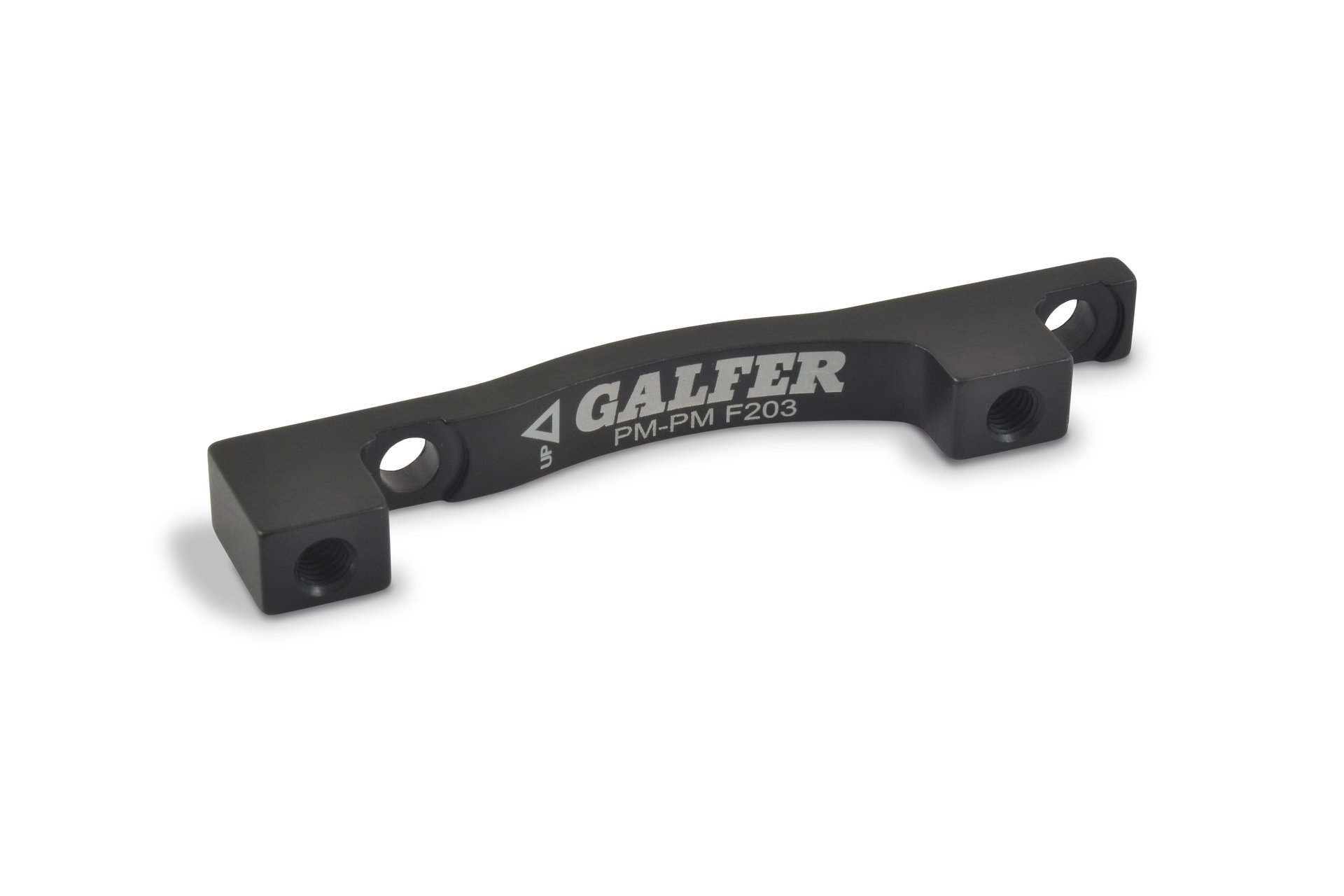

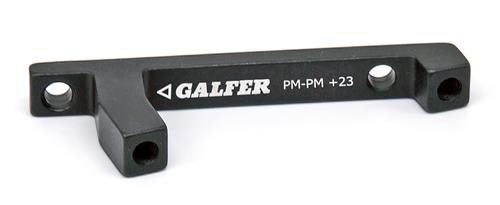

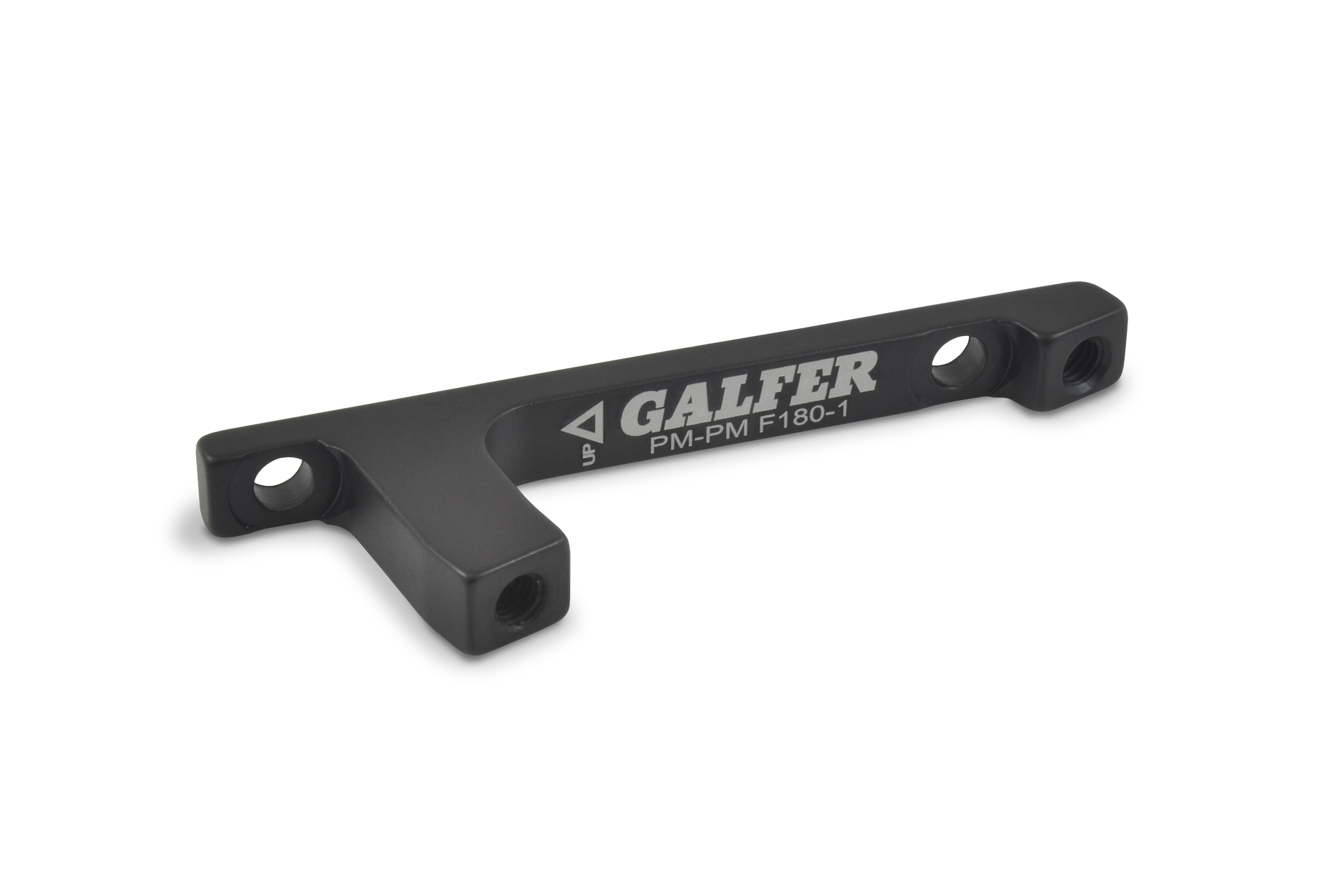

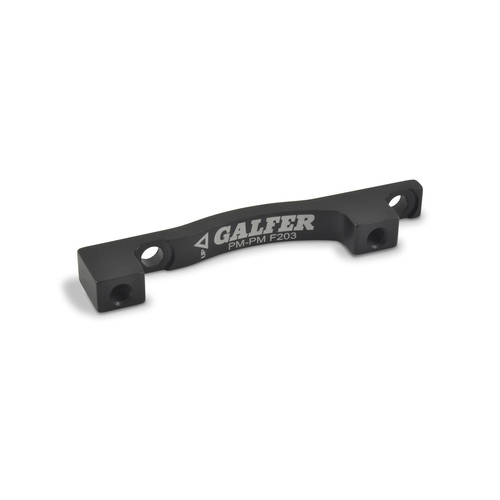

Calliper adapters for oversize brake discs for use with post mount systems.
SB001 +43mm - 21gr
SB002 +20mm - 22gr
SB003 +63mm - 24gr
SB004 +23mm - 26gr
SB005 +23mm - 25gr
Included:
Adaptor plus 2 mounting bolts.
Assembly:
Complete assembly requires 4 bolts. It is advised that assembly is completed by a specialist bicycle mechanic. Do not use with an IS system adaptor for discs bigger than ø180mm. GALFER decline all responsibility in case of failure due to incorrect fitting.
| Ref. | Front Size (mm) | Rear Size (mm) |
| SB001 (+43mm)
| ø160 > ø203 ø180 > ø223 | ø160 > ø203 ø180 > ø223 |
SB002 (+20mm) | ø160 > ø180 ø180 > ø200 ø203 > ø223 | ø160 > ø180 ø180 > ø200 |
SB003 (+63mm) | ø160 > ø223 | ø160 > ø223 |
SB004 (+23mm) | ø180 > ø203 ø200 > ø223 | ø180 > ø203 ø200 > ø223 |

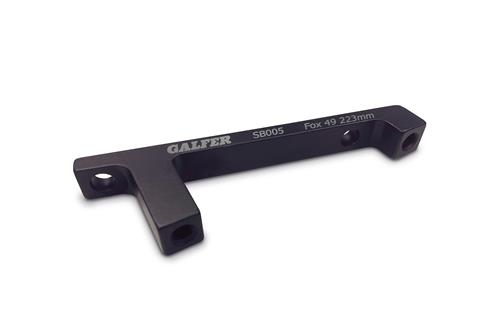

| SB005 (+23mm FOX) | ø200 --> ø223 For FOX 40 & 49 |
