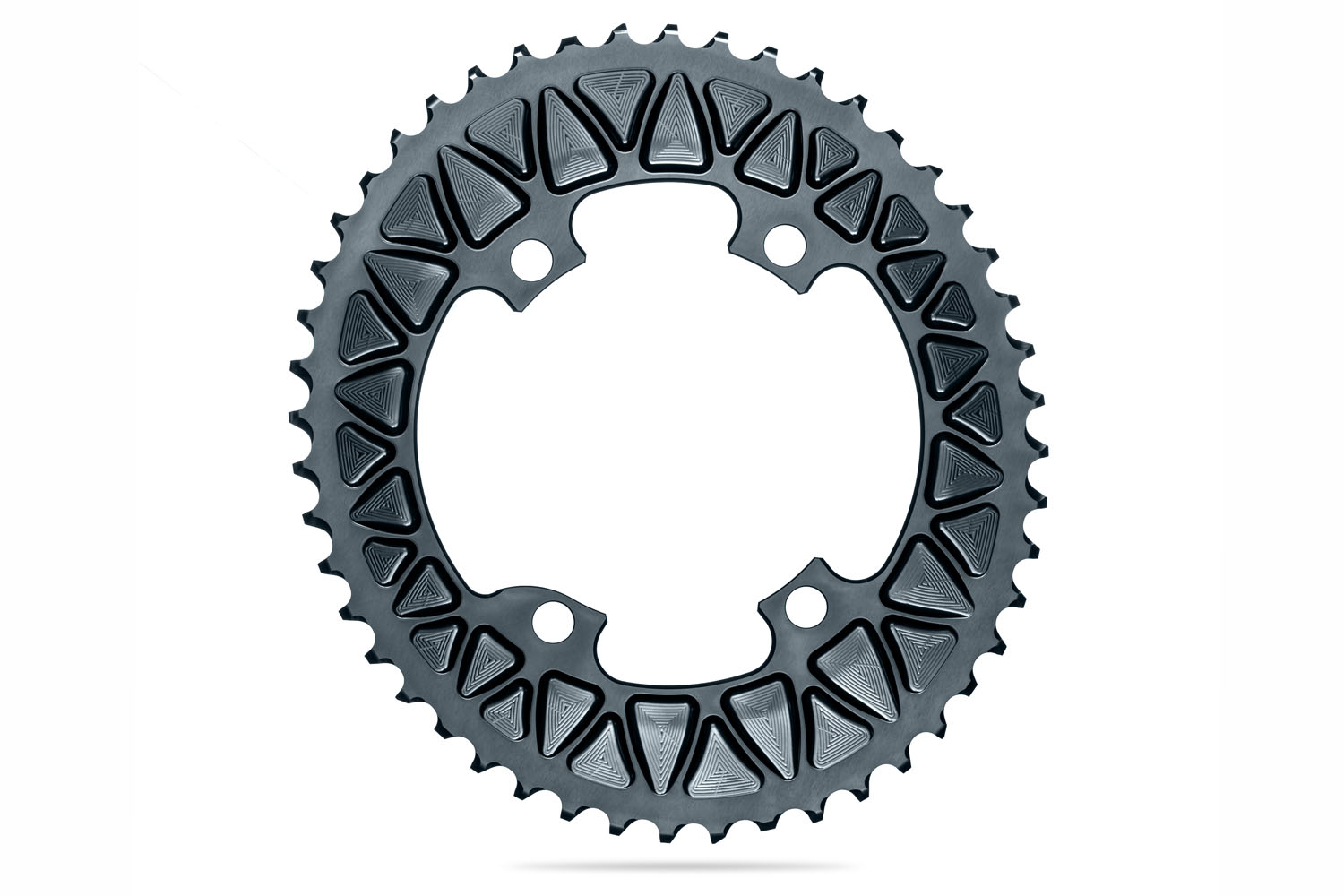

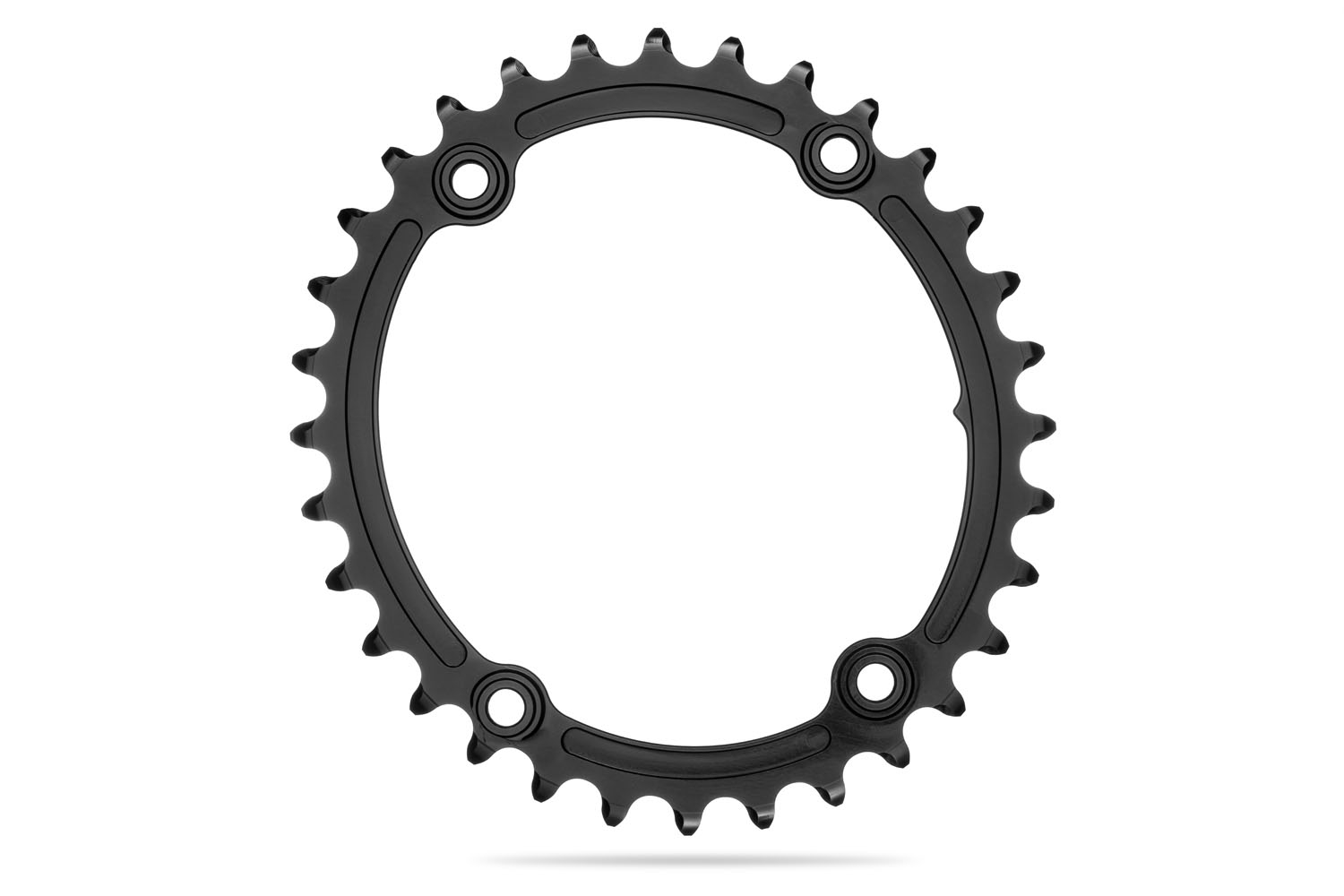

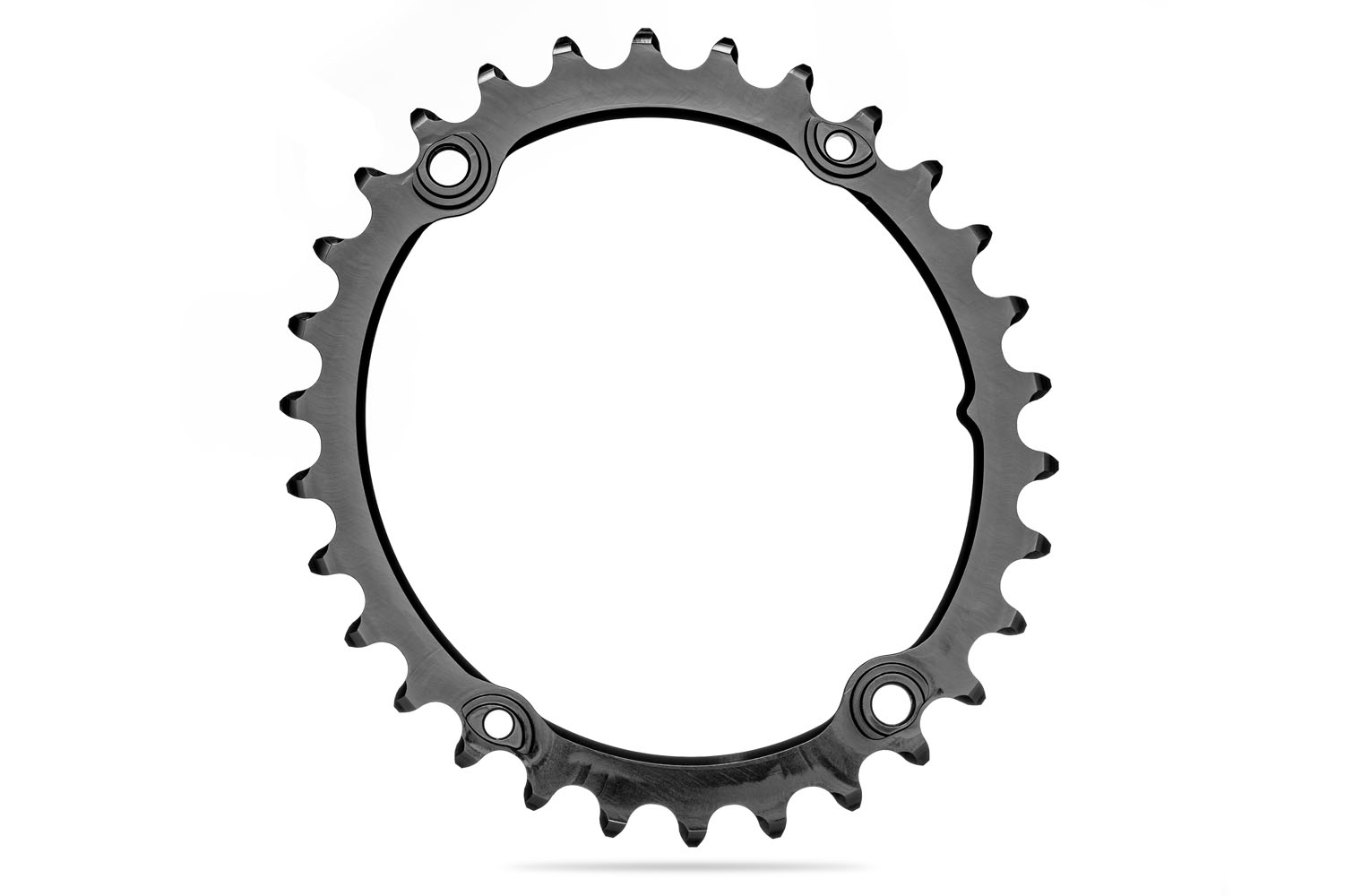

absoluteBLACK Premium Road / Gravel 110/4 oval chainrings in Sub-compact (super compact) sizes to improve your climbing and cadence. Increased Cadence is key to reducing perceived effort. With 48/32T and 46/30T crankset chainrings you can ride anywhere and climb anything. Alpine climbs will never be that difficult anymore. These special super compact chainrings are designed for Shimano 110/4bcd cranks making absoluteBLACK the only company on the market offering such sizes. 30 and 32T chainrings allow you to climb on your own terms with improved cadence and efficiency.

Size: (Mass +/-1g): 30T (27g), 32T (30g), 46T (99g), 48T (110g)

Colour: Black, Grey, Champagne (inner ring in black only)

Compatability: Shimano Dura-Ace 9100, R9120, R9150 & R9170 Di2, Ultegra 8000, R8020, R8050 & 8070 Di2., 105 R7000, R7020, R7070, Dura-Ace 9000 & Di2, Ultegra 6800 & Di2, Shimano 105 5800 , Tiagra 4700* (*contact absoluteBLACK for more information); 10/11spd compatible. Not compatible with Power2max. (please refer to section ‘IMPORTANT’ for exceptions and more information)

BOLTS
Special bolts are included with 30T (2xM5 TI / 2xM7 AL)
Special bolts are included with 32T (4xM7 AL)

Ovality: Optimised to each size separately. 30T- 9% ; 32T - 8% ; 46/48T - 10-11.2% ; Timing of 108 -110.5° after TDC (top dead centre) - Ideal for climbing. Patent Pending

IMPORTANT

• Our Sub Compacts chainrings are not compatible with certain power meters which have circular spider design (some Quarq models, Power2Max, etc…)
• Our Sub Compact chainrings only work in predefined size combinations. When ordering add 30t and 46t, or 32t and 48t chainrings to your basket or a set. Mounting bolts are included in the price of the small ring.
• Due to very special 2.5mm offset construction of BOTH chainrings towards the frame and custom bolts:
• 30T can only work with 46T and special bolt set 46/30. (bolts included with small ring)
• 32T can only work with 48T and special bolt set 48/32. (bolts included with small ring)
• No other combination or mix of rings will work. Due to special mounting construction, aesthetic bolt covers are not offered for this design
• Absolute Black always recommends using a new chain when fitting new chainrings.
• SRAM Yaw front derailleur compatibility – Due to the construction of SRAM Yaw front derailleurs, our Sub Compact chainrings are not compatible with them. If you replace your Yaw front derailleur with a Shimano equivalent (there are no indexing issues between Shimano FD and SRAM shift levers) you will be able to use our Sub Compact chainrings.

Advantages of Absolute Black sub-compact Oval chainrings:

• 30 and 32T chainrings allow you to climb on your own terms with improved cadence and efficiency

• One of a kind special oval shape that helps you climb easier and faster (Patent Pending)

• No more mashing on long climbs and wishing for bigger cassette.

• Have you ever had to walk the climb on sportive race? These rings will save you from it.

• 46/11 or 48/11 is still a big gear to push on the flat. For your daily ride you most likely don't need more

• Your pedalling will feel smoother

• AB oval reduces stress on knees and helps your legs remain fresher for longer

• You will be able to maintain better cadence while climbing

• Reduces possibility of leg cramps
